Paths Configuration Preferences

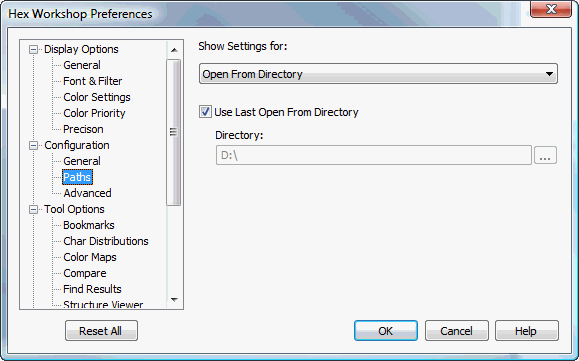

Hex Workshop Preferences Dialog is launched by either selecting "Preferences..." from the "Options" menu or by pressing the Preferences icon on the File Operations Toolbar.
Preferences are organized under 4 major categories: Display Options, Configuration, Tool Options, and Import/Export followed by sub-categories.
The "Reset All" button resets all preferences to default settings. The "Help" button displays help for selected preference sub-category.
|
Path Setting |
Description |
|
Open From |
The default open path used when opening files. Options: Last used or user-defined path |
|
Save To |
The default save path used when saving files. Options: Last used or user-defined path |
|
Import From |
The default open path used when importing files. Options: Last used or user-defined path |
|
Export To |
The default open path used when exporting files. Options: Last used or user-defined path |
|
Compare Source |
The default open path used when selecting a comparison source file. Options: Last used or user-defined path |
|
Compare Target |
The default open path used when selecting a comparison target file. Options: Last used or user-defined path |
|
Temporary Files |
The default directory used for temporary files. Options: System default or used-defined. |
|
Structures |
The default directory used to find structure definition files. Options: Installation default or used-defined. |
|
Bookmarks |
The default directory used to find bookmark definition files. Options: Installation default or used-defined. |
|
Color maps |
The default directory used to find color map definition files. Options: Installation default or used-defined. |
|
Character Filters |
The default directory used to find character filter definition files. Options: Installation default or used-defined. |
|
Palette Directory |
The default directory used to find palette files for use with the Data Visualizer. Options: Installation default or used-defined. |
Check to use the last-used directory or Uncheck to specify a path.
Check to use the default directory or Uncheck to specify a path.
